Prime-Line White Steel Left Single-Arm Casement Window Operator For Steel Framed Windows

Original price was: £17.99.Current price is: £12.59.

Prompt service, every time.

Multiple safe payment methods

Quality and Affordability Combined

Nature-friendly materials, for a better planet.

This casement window operator is a left-handed bronze square body type. It has a 9 in. steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the Prime-Line part H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 in. crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 in. and 4-3/4 in. apart.

Left handed square body crank handle (viewed from inside looking out)

Mounting holes are 3-7/8 in. and 4-3/4 in. on center

Arm is 9 in. from middle of the guide button to the middle of the crank operator while closed

Heavy duty diecast zinc construction with a white finish

Steel worm drive gear for durability

Matching crank handle is included

A Phillips head screwdriver is required for installation

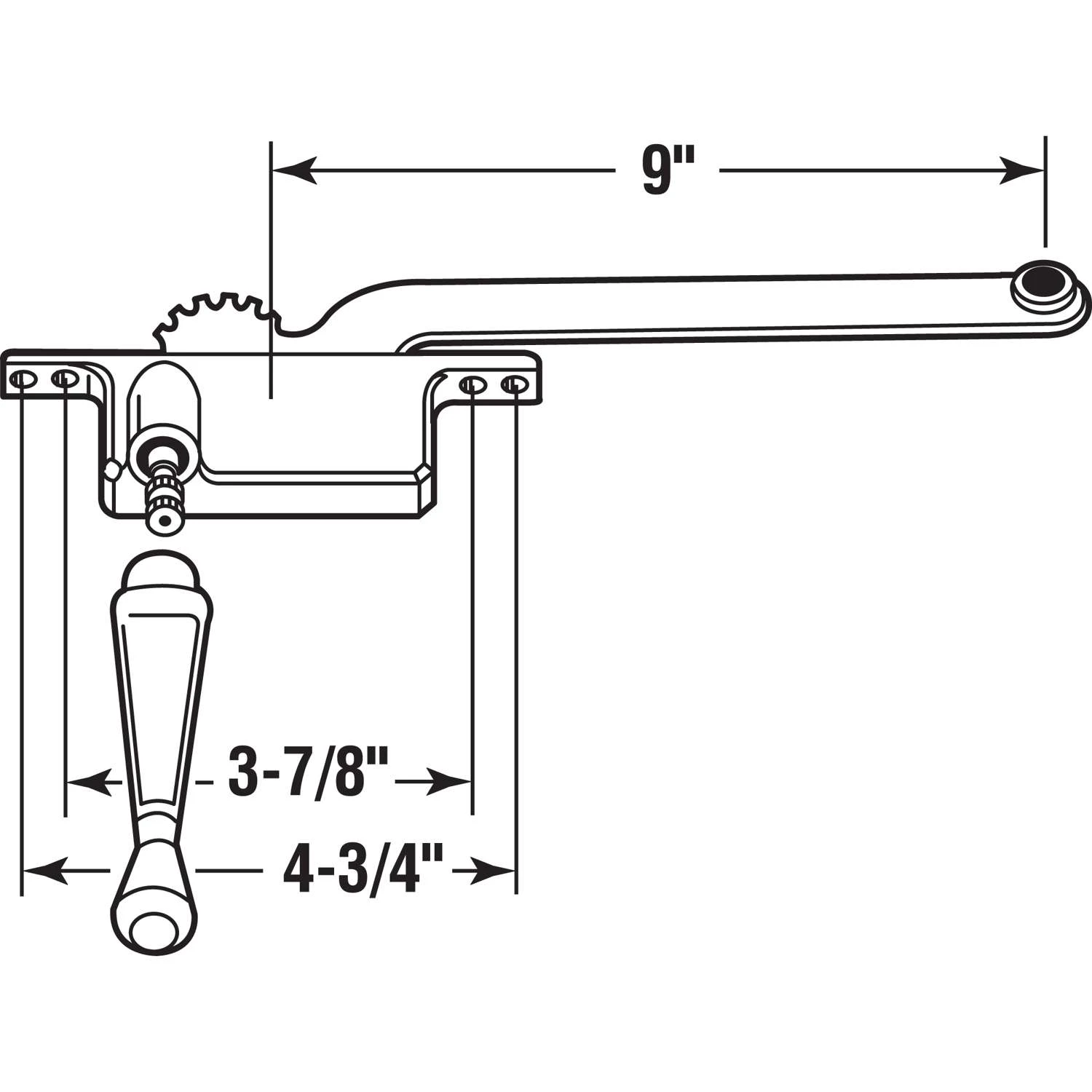

For further dimensional information, please see the line drawing

Dollar Velocity Code	D
Local SKU Available Stores	ALL
Item Restriction Flag	N
Category	Window and Screen Hardware
Merchandise Class Description	WINDOW HARDWARE
Assembly Code	N
Brand Name	Prime-Line
Country Of Origin	TW
Search Field	Prime-Line White Steel Left Single-Arm Casement Window Operator For Steel Framed Windows Window and Screen Hardware Window Operators and Cranks WINDOW HARDWARE CASEMENT/JALOUSIE HDWE PRIME-LINE PRODUCTS/SLIDE-CO Prime-Line
Local SKU Store SKUs	04761979
Web Order Multiple	1
Brand Compatibility	Steel Framed Windows
Color	White
Diameter	3/8 inch
Handle Type	Single-Arm Casement
Length	9 inch
Material	Steel
Number in Package	1 pack
Orientation	Left
ISPU Only Item Flag	N
Warranty Code	N
Product Type Noun	Operator
Sub-category	Window Operators and Cranks
Retail Velocity Code	D
Sales Rank	022
Unit Velocity Code	D
Store Availability Rank	08
Product Group Description	CASEMENT/JALOUSIE HDWE
Product Source Code	B
Product Type	Window Operator
Product Type Code	005012001011
Paint Code	N
Vendor Number	05746
PLA Shipping Charge	15
Delivery Offered	Y
Department Number	5
DIFM Service Code	N
Display Only Item	N
Shipping Code	Y
Proposition 65 Flag	N
Vendor Name	PRIME-LINE PRODUCTS/SLIDE-CO
Packaging Type	Carded
