Prime-Line Steel Universal Roller Assembly For Guaranteed Products

Original price was: £17.99.Current price is: £12.59.

Prompt service, every time.

Multiple safe payment methods

Quality and Affordability Combined

Nature-friendly materials, for a better planet.

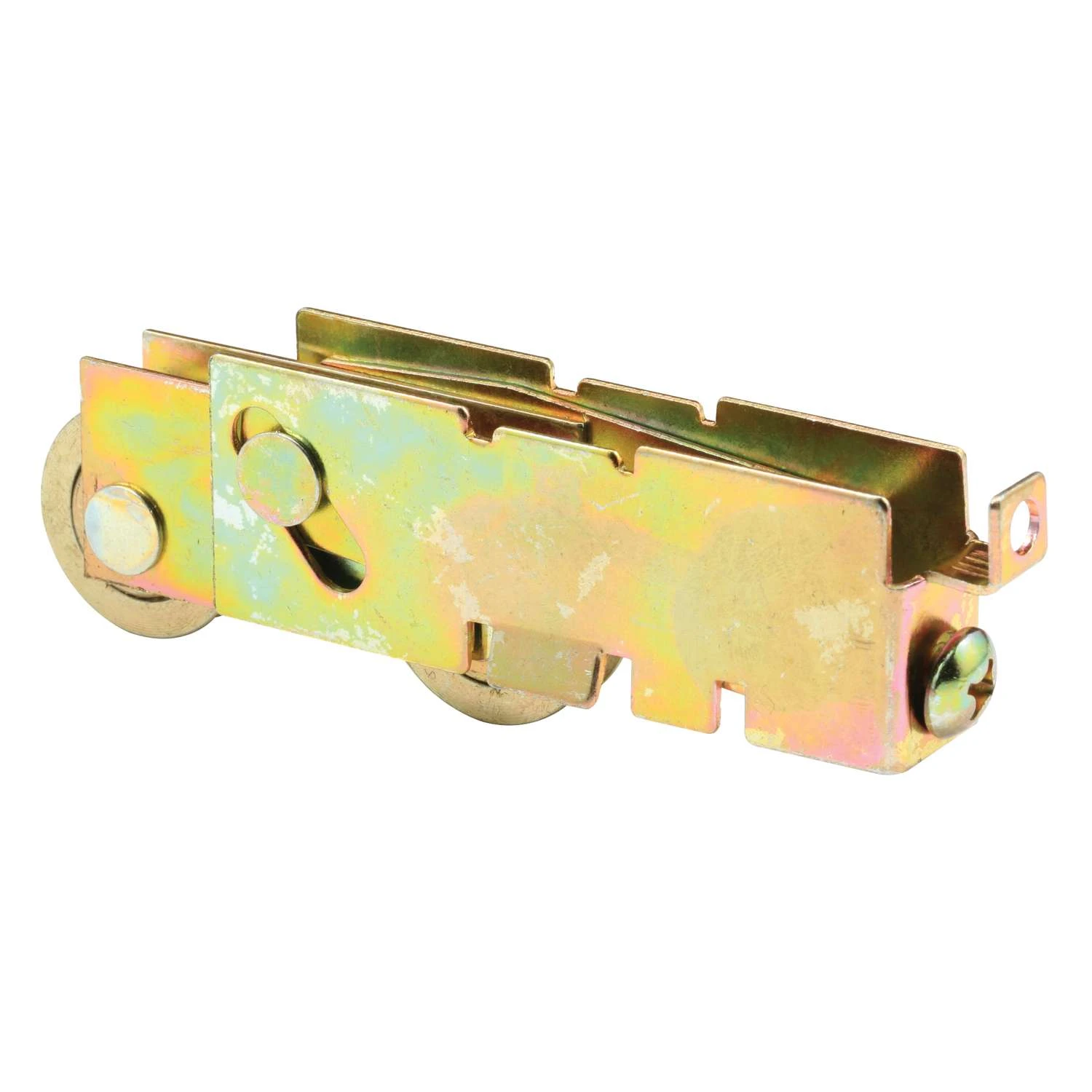

This is a F-tab tandem roller assembly with two 1-1/8 in. concave steel ball bearing rollers installed. When the corner screw passes through the F-tab, the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The adjustable stamped steel housing is 11/16 in. wide with a 13/16 in. flare, 1-1/8 in. tall and 3-1/8 in. long. Used by a variety of sliding patio door manufacturers.

Used by a variety of sliding patio door manufacturers

When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together

1-1/8 in. diameter tandem concave rollers

Stamped steel with steel ball bearing

Rear adjustment screw

Allows the door to roll smoothly

A Phillips head screwdriver is required for installation

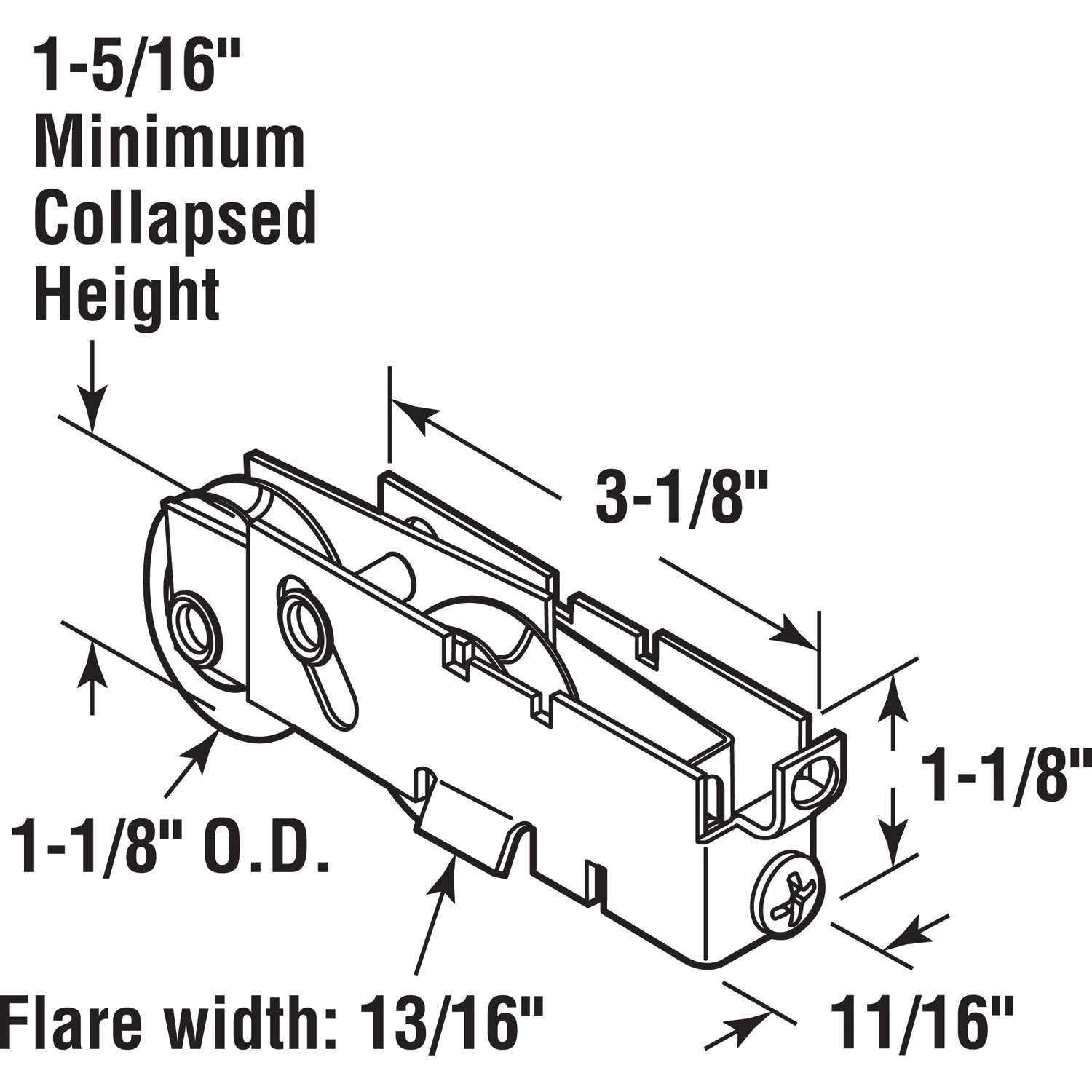

For further dimensional information, please see the line drawing

Assembly Code	N
Brand Name	Prime-Line
Product Type Noun	Assembly
Search Field	Prime-Line Steel Universal Roller Assembly For Guaranteed Products Window and Screen Hardware Window Operators and Cranks DOOR HARDWARE PATIO DOOR ROLLERS PRIME-LINE PRODUCTS/SLIDE-CO Prime-Line
Sales Rank	029
PLA Shipping Charge	5
DIFM Service Code	N
Warranty Code	N
Paint Code	N
Local SKU Available Stores	ALL
Merchandise Class Description	DOOR HARDWARE
Local SKU Store SKUs	5887351
Brand Compatibility	Guaranteed Products
Diameter	1.13 inch
Handle Type	Universal
Length	3-1/8 inch
Material	Steel
Number in Package	1 pack
Packaging Type	Carded
Product Group Description	PATIO DOOR ROLLERS
Category	Window and Screen Hardware
Country Of Origin	CN
Product Type Code	005012001011
Delivery Offered	Y
Department Number	5
Display Only Item	N
Dollar Velocity Code	C
Item Restriction Flag	N
Product Source Code	B
Product Type	Roller Assembly
Sub-category	Window Operators and Cranks
ISPU Only Item Flag	N
Proposition 65 Flag	N
Retail Velocity Code	C
Shipping Code	Y
Store Availability Rank	10
Unit Velocity Code	C
Vendor Name	PRIME-LINE PRODUCTS/SLIDE-CO
Vendor Number	05746
Web Order Multiple	1
Width	0.31 inch
