Prime-Line Bronze Steel Right Single-Arm Casement Operator W/Crank
Original price was: £37.99.£26.59Current price is: £26.59.
- Prompt service, every time.
- Multiple safe payment methods
- Quality and Affordability Combined
- Nature-friendly materials, for a better planet.

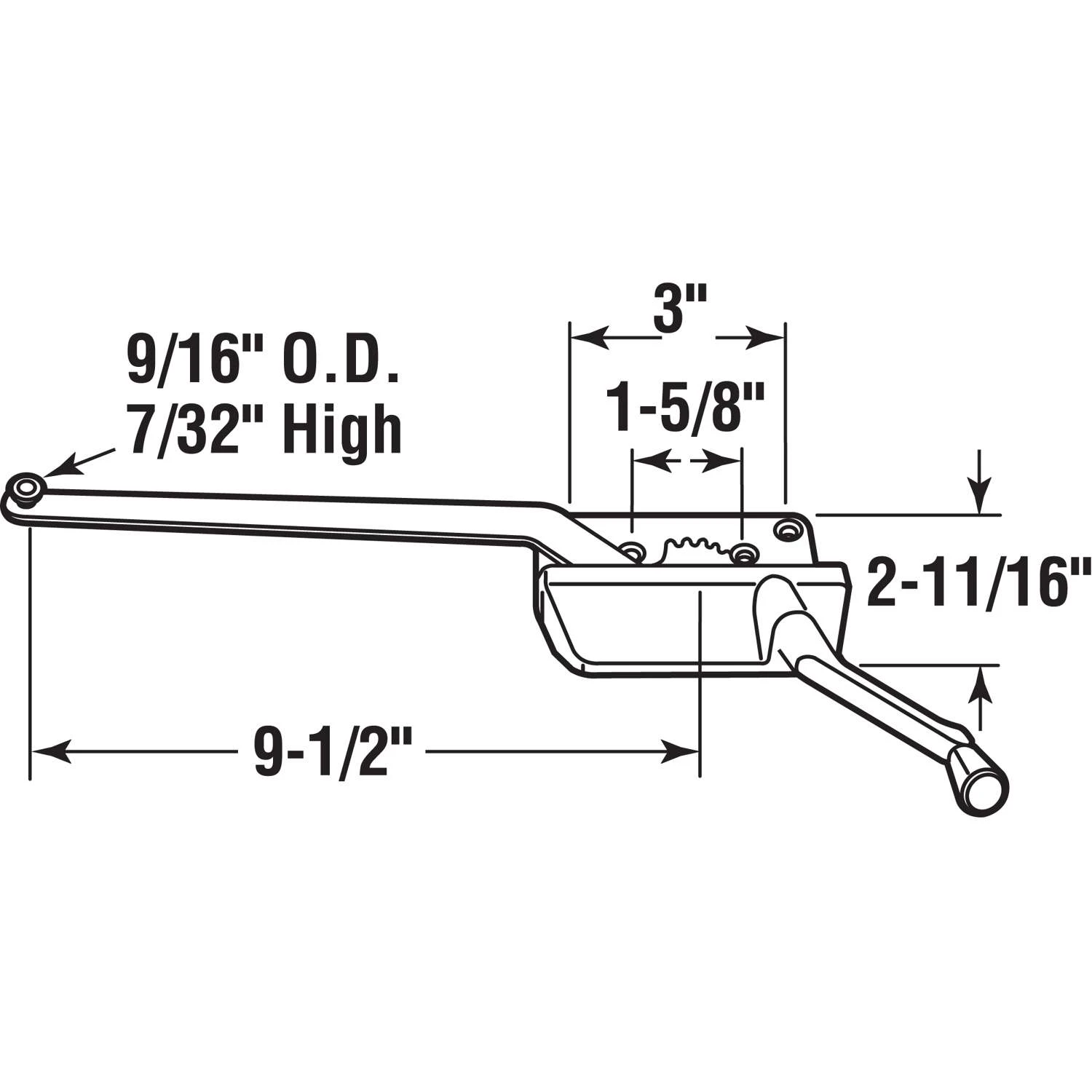

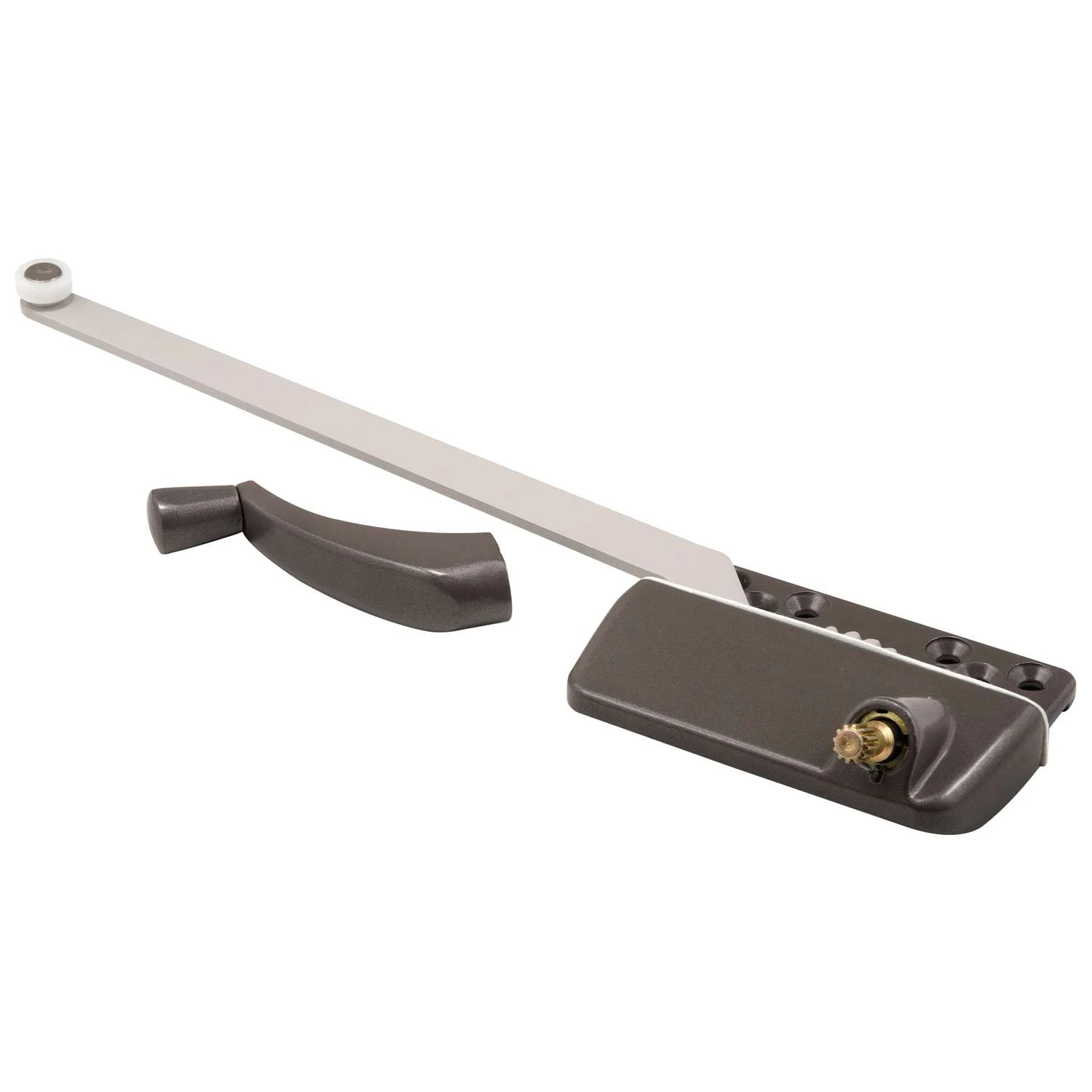

This is a bronze casement operator that has been used on wood and vinyl windows for the last 35 years. It is right-handed as viewed from the inside looking out. The body is bronze diecast with a steel worm gear driving a 9-1/2 in. painted steel arm with plastic guide button on the tip. The guide button glides through the track Prime-Line part H 3530. It contains one operator, 1 crank handle and installation screws. For matching right-hand casement operator use Prime-Line part H 3568. Used to replace a 9-1/2 in. right hand casement operator Features two mounting options (3 in. or 1-5/8 in on center) Square body casement operator Diecast with bronze finish Crank handle is included Steel worm gear and painted steel arm A Phillips head screwdriver is required for installation For further dimensional information, please see the line drawing
| Web Order Multiple | 1 |
|---|---|
| Local SKU Available Stores | 18197 |
| Product Source Code | D |
| Warranty Code | N |
| Paint Code | N |
| Product Type | Operator w/Crank |
| DIFM Service Code | N |
| Brand Name | Prime-Line |
| Search Field | Prime-Line Bronze Steel Right Single-Arm Casement Operator w/Crank Window and Screen Hardware Window Operators and Cranks WINDOW HARDWARE CASEMENT/JALOUSIE HDWE PRIME-LINE PRODUCTS/SLIDE-CO Prime-Line |
| Local SKU Store SKUs | 624015 501575 5198866 5198866D |
| Merchandise Class Description | WINDOW HARDWARE |
| Color | Bronze |
| Diameter | 11/32 inch |
| Handle Type | Single-Arm Casement |
| Length | 9 1/2 inch |
| Material | Steel |
| Number in Package | 1 pack |
| Orientation | Right |
| Packaging Type | Carded |
| Product Group Description | CASEMENT/JALOUSIE HDWE |
| Category | Window and Screen Hardware |
| Product Type Code | 005012001011 |
| Unit Velocity Code | N |
| Sub-category | Window Operators and Cranks |
| Product Type Noun | w/Crank |
| Proposition 65 Flag | N |
| Retail Velocity Code | N |
| Sales Rank | 079 |
| Shipping Code | Y |
| Store Availability Rank | 10 |
| Vendor Name | PRIME-LINE PRODUCTS/SLIDE-CO |
| Item Restriction Flag | N |
| Vendor Number | 05746 |
| Assembly Code | N |
| Display Only Item | N |
| Dollar Velocity Code | D |
| Country Of Origin | TW |
| Delivery Offered | Y |
| Department Number | 5 |
| ISPU Only Item Flag | Y |
| Width | 9.5 inch |
